Juno R2 Development Board
Enablement
LAVA by default is configured to work with this DUT + LAA setup. If you opt for a different setup you’ll have to change your DUT + LAA device configuration on LAVA.
Components
The following components are required to fully automate the board:
Short RJ45 network cable
2.5/5.5mm barrel jack to MIB 2-pin connector, wired centre positive
USB to serial adapter, with male DB9 connector
USB-A male to USB-B male cable
USB-A male to USB-C male cable
Juno Package
Some of the cables are inside the Juno package. The USB to serial adapter was not capable of sending data to the Juno, it is suggested to buy your own.
Hardware modification
No hardware modifications are required.
MIB
Configuration
No need to use any jumper on the Flylead MIB to set the voltage.
Recovery

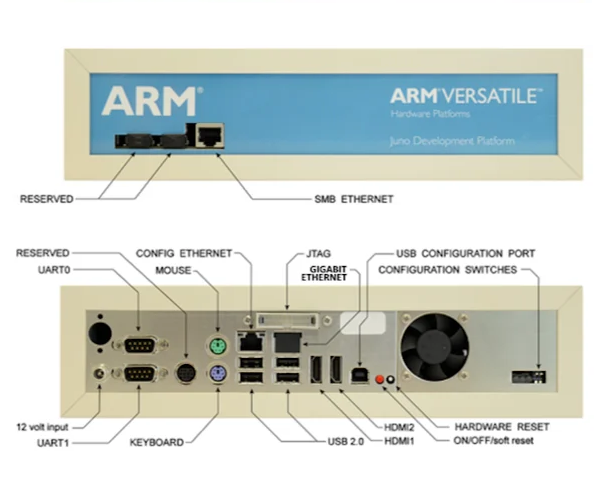

Connect the USB-A male to USB-B male cable to the LAA USB Port3 to the Juno USB CONFIGURATION PORT.
Network
Connect the Juno front ethernet network interface called SMB ETHERNET to the LAA private network interface.
Power
The Juno gets power from the 2.5/5.5mm barrel jack connected to the board and the 12V header on the MIB.
Serial
Connect the USB to serial adapter cable from the carrier board port labeled UART0 to the LAA USB Port2.
USB
Connect the LAA USB OTG port (front facing) to any of the four Juno USB 2.0 ports. We usually make use of the top left port.
